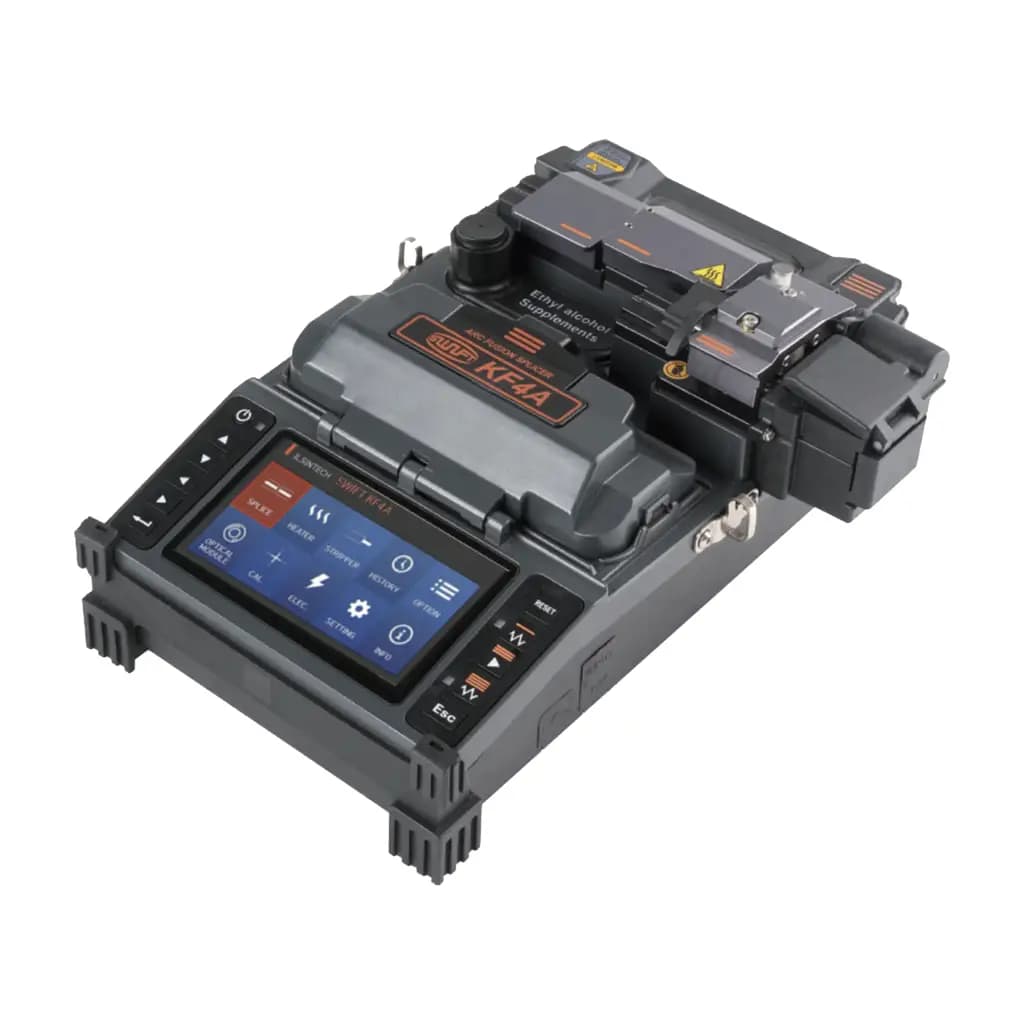

The SWIFT KF4A is an all-in-one single-fiber fusion splicer that integrates five functions - stripping, cleaning, cleaving, splicing and sleeve protection - into a single compact unit. Active clad-to-clad alignment produces typical single-mode splice losses of 0.02 dB in about 7 seconds, and thermal stripping avoids fiber scratches. Its rugged, dust-, water- and shock-proof design and one-piece workflow make it well suited to pole-top and confined-space installations.

Key features

• All-in-one design combining stripping, cleaning, cleaving, splicing and protecting in one unit
• Active clad-to-clad alignment with roughly 7-second typical single-mode splice and 13-second sleeve heating
• Long consumable life: electrodes up to 38,000 splices and cleaver blade up to 77,000 cleaves
• Compatible with Fusion Splice-On Connectors (FSOC) to industry standard
• Two-camera, two-axis viewing on a 4.3-inch color LCD with up to 220X magnification
• Rugged dust-proof, water-proof and shock-proof housing for field and limited-space use

Specifications

• Fiber alignment: Active clad-to-clad (IPAAS)
• Applicable fiber types: 0.25 / 0.9 / 2.0 / 3.0 mm (incl. indoor cable)
• Fiber count: Single fiber
• Fiber dimensions: Cladding 125 um; coating 150 um-3 mm
• Cleaved length: 7-16 mm
• Splicing modes: 300 splice modes / 100 heat modes
• Typical splice loss: SM 0.02 dB; MM 0.01 dB; DS 0.04 dB; NZDS 0.04 dB
• Return loss: > 60 dB
• Splice time: Typical 7 s (single-mode)
• Sleeve heating time: Typical 13 s (IS-60 mode / sleeve)
• Protection sleeve: 40 mm / 60 mm micro sleeve
• Result storage: Up to 5,000 data and 5,000 images
• Tension test: 1.96-2.25 N
• Display: Two CMOS cameras, two-axis, 4.3-inch color LCD
• Magnification: X/Y 110X; max 220X
• Battery / power: Li-ion 14.8V 3400 mAh; 100-240V AC charger
• Splice cycles per charge: Typical 200
• Electrode life: Up to 38,000 splices
• Cleaver blade life: Up to 77,000 cleaves
• Operating conditions: 0-5,000 m; -10 to 50 C; 0-95% RH; wind 15 m/s
• Storage conditions: -40 to 80 C; 0-95% RH
• Dimensions: 132 (W) x 212 (L) x 73 (H) mm
• Weight: 1.5 kg (with battery)
• Interface: USB

Applications

Enterprise, data center, broadband and FTTH network installation and maintenance.

In the box

Arc fusion splicer (KF4A), battery (KF-3400), battery adapter, spare electrodes (1 pair), hard transporting case, optical fiber holders (1 pair), sleeve clamp, cooling tray, Allen wrench, USB cable, hard brush, soft brush, tool box, tweezers and instructions.
