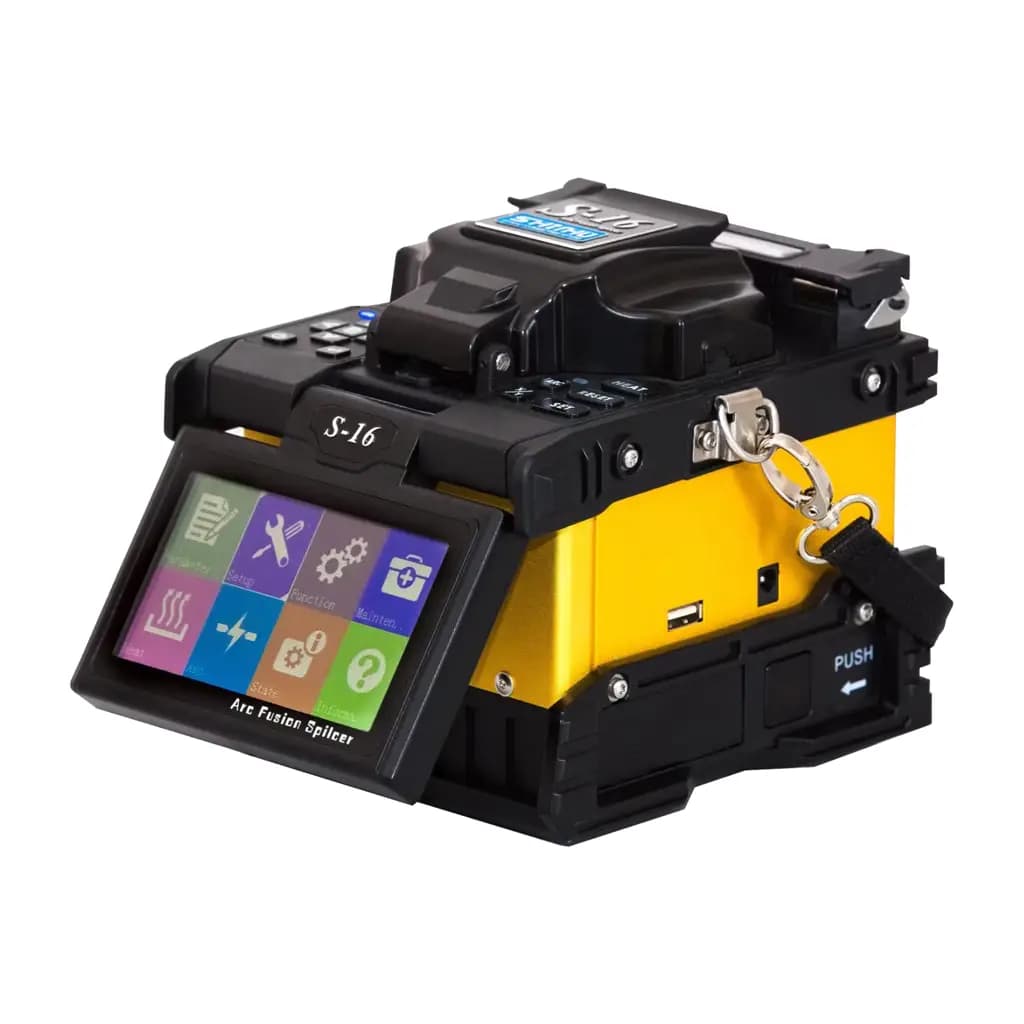

The SHINHO S-16 is a handheld FTTx fusion splicer that uses four-motor, core-to-core alignment to join single-mode and multimode fibers with low, repeatable loss. It completes a typical splice in about 6 seconds and heats a protection sleeve in 18 seconds, while an industrial quad-core CPU and dual high-sensitivity cameras keep the workflow fast and stable. A rugged, anti-shock, dust-proof and water-proof body makes it suitable for medium-backbone and FTTx field work.

Key features

• Four-motor core-to-core alignment for accurate, low-loss splices (typical single-mode loss 0.02 dB)
• Fast workflow with roughly 6-second typical splice time and 18-second sleeve heating
• 4.3-inch 800x480 LCD with dual high-sensitivity cameras and up to 250X fiber magnification
• 5200 mAh lithium battery supporting about 250 splice-and-heat cycles per charge
• Long-life electrodes rated for more than 4000 arc discharges
• Rugged anti-shock, dust-proof and water-proof construction for field use

Specifications

• Alignment method: 4 motors, core-to-core
• Applicable fiber: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655)
• Cladding diameter: 80-150 um
• Coating diameter: 160-1000 um
• Cleaved length: 5-16 mm (coating < 250 um); 16 mm (coating 250-1000 um)
• Typical splice loss: SM 0.02 dB; MM 0.01 dB; DS 0.04 dB; NZDS 0.04 dB
• Return loss: > 60 dB
• Splicing programs: 40 groups
• Operation mode: Manual / Automatic
• Typical splice time: 6 seconds
• Typical heating time: 18 seconds (40/60 mm sleeves)
• Fiber magnification: 250X (single view), 125X (dual view)
• Display: Dual camera, 4.3-inch 800x480 LCD
• Data storage: 4000 records
• Tension test: 1.8-2.25 N
• Battery: 5200 mAh Li-ion, approx. 250 splice/heat cycles
• Power supply: AC 100-240V (50/60 Hz) adapter, output DC 11-13.5V
• Electrode life: > 4000 arc discharges
• Interface: USB 2.0
• Operating conditions: 0-5000 m; 0-95% RH; -10 to +50 C; wind max 15 m/s
• Dimensions / weight: 160 x 136 x 140 mm / 2.20 kg (with battery)

Applications

Medium-backbone and FTTx fiber-optic construction and maintenance.

In the box

Fusion splicer, fiber cleaver, fiber stripper, cooling tray, spare electrodes, drop cable stripper, carrying box, power adapter, power plug, user manual, strap and alcohol pump.
