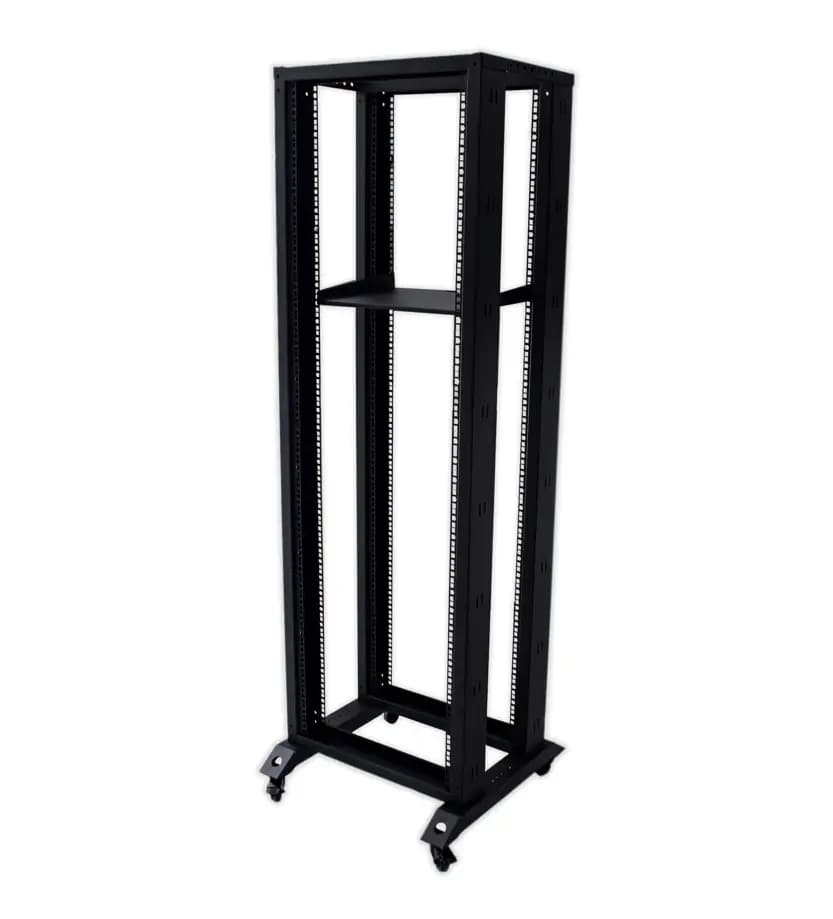

The BlueStorm Open Rack is a modular open-frame rack for mounting 19-inch network, server and patching equipment where maximum access and airflow are required. It can be configured with two or four mounting poles, offers adjustable depth and can be bolted directly to the floor. The frame is built from SPCC cold-rolled steel with a black powder-coated finish and carries a maximum load of 300 kg.

Key features

• Modular design with a choice of 2 or 4 mounting poles
• Adjustable depth to suit varying equipment sizes
• Can be bolted directly to the floor; castors also available
• Maximum access to equipment for easy installation and maintenance
• 300 kg maximum load capacity
• Complies with ANSI/EIA RS-310-D, DIN 41491 Part 1, DIN 41494 Part 7 and ETSI

Specifications

• Type: Open-frame rack, 2 or 4 post
• Mounting: 19-inch (ANSI/EIA RS-310-D)
• Max load capacity: 300 kg
• Material: SPCC cold-rolled steel
• Pole / base / shelf thickness: 2.0 mm
• Depth: Adjustable
• Finish: Powder coated (degreasing, acid pickling, rust prevention, parkerizing, static powder coating)
• Colour: Black
• Castors: Available (4)
• Fixing: Floor-bolt
• Standards: ANSI/EIA RS-310-D, DIN 41491 Part 1, DIN 41494 Part 7, ETSI
• Packing: Disassembled (flat-pack)

In the box

• 2 x vertical pole (2.0 mm SPCC cold-rolled steel, powder coated)
• 2 or 4 x base (2.0 mm SPCC cold-rolled steel, powder coated)
• 1 x shelf (2.0 mm SPCC cold-rolled steel, powder coated)
• 4 x castor
• 10 x M6 screw and nut (steel, colour-zinc finish)
