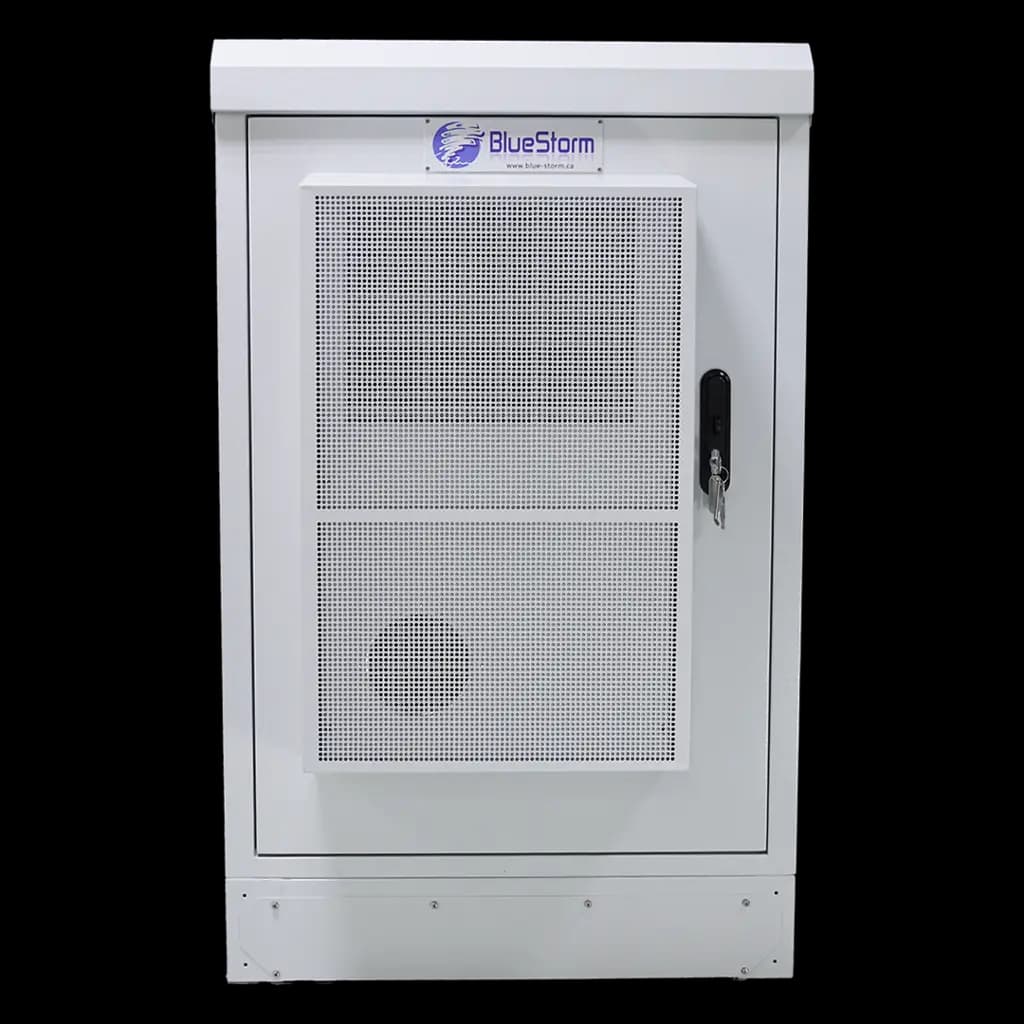

The BlueStorm BS-OC-22U-AC is a 22U outdoor air-cooling cabinet built for deploying active network and telecom equipment in unconditioned external locations. Its double-wall SPCC steel construction and integrated air-conditioning (A/C) unit maintain a controlled internal temperature, while a handle-lock front door and earthing provisions protect the installed hardware. The cabinet has an 800 mm wide by 1000 mm deep footprint and accepts standard 19-inch mounting.

Key features

• 22U of 19-inch mounting space in a rugged double-wall steel enclosure
• Integrated air-conditioning (A/C) unit; AC type and capacity can be supplied to order
• 1.5 mm SPCC steel front door with handle lock and 2 mm SPCC steel mounting profiles
• Internal light with light button, earthing and wiring panel for tidy cable management
• Eight cable-entry holes with rubber grommets and 20 stainless-steel cage nuts supplied
• Optional shelf; customised size, colour and power distribution unit available to order

Specifications

• Model: BS-OC-22U-AC
• Rack units: 22U
• Frame: Double-wall type
• External width: 800 mm
• External depth: 1000 mm
• External height: 1000 mm (per datasheet)
• Front door: 1.5 mm SPCC steel
• Door lock: Handle lock
• Mounting profile: 2 mm SPCC steel
• Cable entry: 8 round holes with rubber covers
• Cage nuts: 20, stainless steel
• Air conditioning: Integrated A/C unit
• Internal light: Yes (with light button)
• Earthing: Yes
• Shelf: Optional
• Colour / size: Customisable

Applications

• Outdoor telecom, network and CCTV equipment cabinets
• Roadside, rooftop and remote-site enclosures
• Climate-controlled protection of 19-inch equipment in external environments
