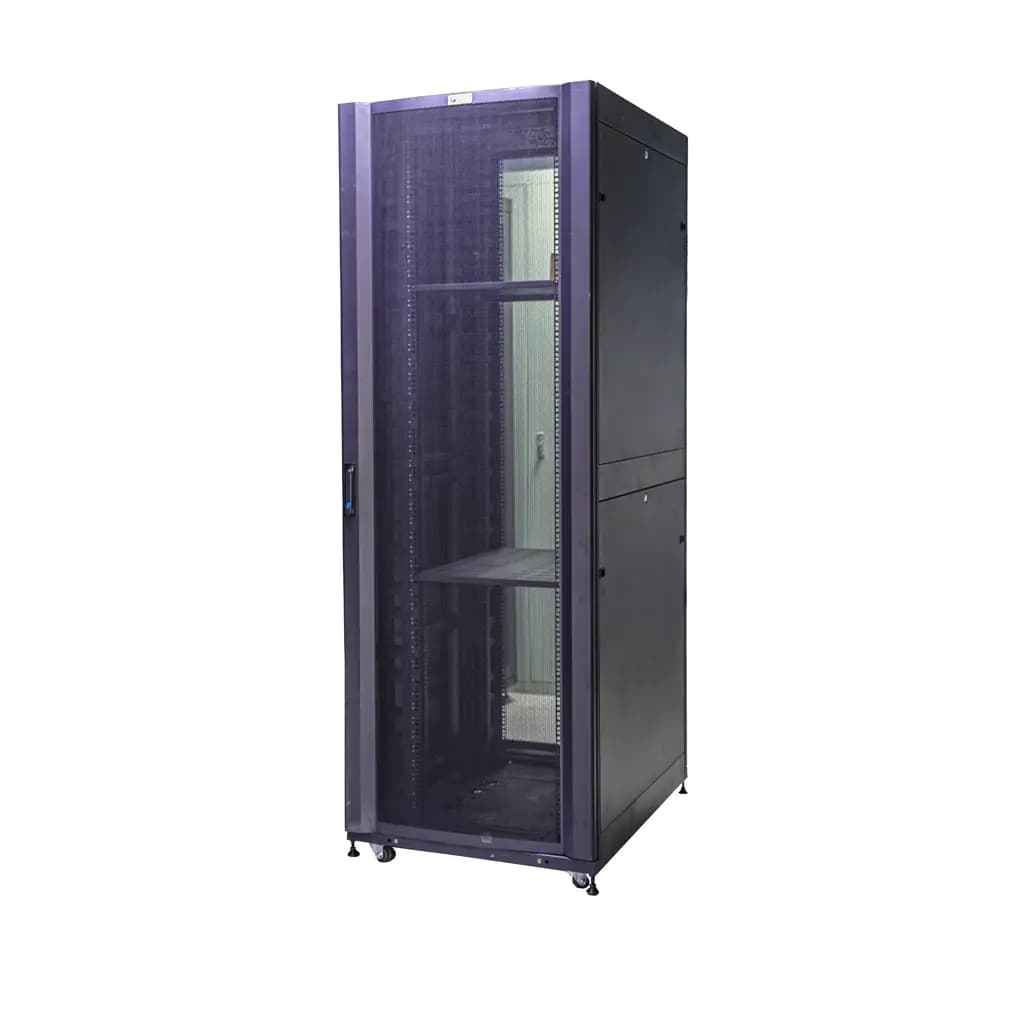

The BlueStorm 48U heavy-duty server cabinet is a floor-standing enclosure designed for networks, servers and data-centre deployments. Built from 1.2 mm SPCC steel with 1.5 mm mounting profiles and 2.0 mm steel hinges, it is offered as the BS-SC1-V8-48U with a vented steel front door or the BS-SC1-G8-48U with a 5 mm tempered-glass front door. Both variants measure 800 mm wide, 1000 mm deep and 2180 mm high and include four fans, a PDU, three shelves and vertical cable management.

Key features

• 48U of 19-inch mounting height in a heavy-duty 1.2 mm SPCC steel body
• Choice of vented steel (V8) or 5 mm tempered-glass (G8) front door
• Four fans, a heat sensor and a PDU included for thermal and power management
• Three steel shelves, two vertical cable trays and seven wiring panels for organised builds
• Lockable side doors, four quick-open latches, castors and levelling feet
• 30 stainless-steel cage nuts and earthing supplied; glass-door model ships assembled

Specifications

• Model: BS-SC1-V8-48U (vented) / BS-SC1-G8-48U (glass)
• Rack units: 48U
• External width: 800 mm
• External depth: 1000 mm
• External height: 2180 mm
• Frame: 1.2 mm SPCC steel
• Front door: 1.2 mm SPCC steel vented (V8) or 5 mm tempered glass (G8)
• Side doors: 1.2 mm SPCC steel (x2), lockable
• Rear door: 1.2 mm SPCC steel
• Mounting profile: 1.5 mm SPCC steel (x4)
• Hinges: 2.0 mm steel
• Shelves: 3 (1.2 mm SPCC steel)
• Cage nuts: 30, stainless steel
• Fans: 4
• PDU: 1
• Internal light: Yes (with light button)
• Heat sensor: Yes
• Vertical cable tray: 2
• Quick-open latch: 4
• Castors & feet: Yes (4)
• Earthing: Yes
• Assembly: V8 flat-packed / G8 assembled

Applications

• Data centres and server rooms
• Enterprise network and telecom equipment
• High-density 19-inch rack deployments
