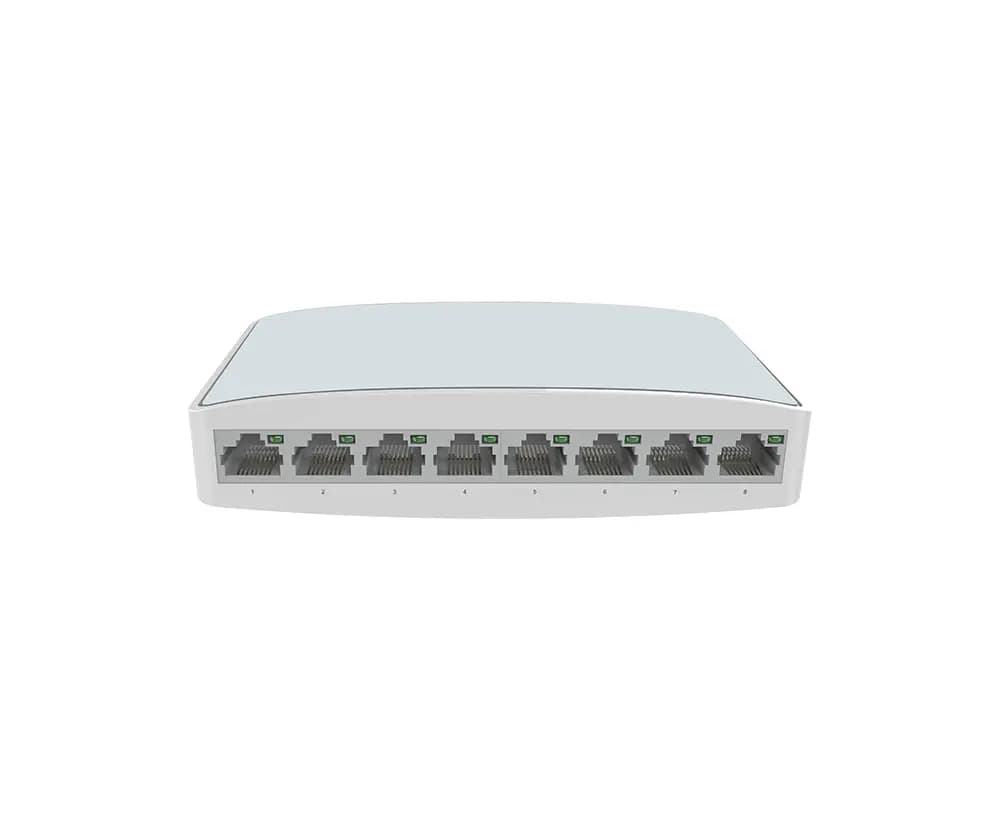

The ONV-H3008S is an unmanaged Gigabit Ethernet switch with eight 10/100/1000Base-T auto-sensing RJ45 ports. Its large-buffer switching chip supports non-blocking wire-speed forwarding, improving transfer of large files and preventing video freezing and frame loss in high-definition surveillance networks. Fanless, plug-and-play and built in a flame-retardant plastic case, it is well suited to hotels, banks, campuses and small and medium businesses.

Key features

• 8 x 10/100/1000Base-T auto-sensing RJ45 ports with full/half-duplex and MDI/MDI-X auto-negotiation.
• Gigabit non-blocking store-and-forward switching (16 Gbps capacity, 11.9 Mpps at 64 byte).
• Fanless, low-power design (under 5 W at full load) for silent, reliable operation.
• Plug and play - no configuration required.
• 4 kV lightning protection and IP30 flame-retardant housing.
• LED indicators for power and per-port Link/Act status; desktop or wall-mount installation.

Specifications

• Model: ONV-H3008S
• Fixed ports: 8 x 10/100/1000Base-T RJ45 (data)
• Ethernet port: 10/100/1000Base-T auto-sensing, full/half duplex, MDI/MDI-X self-adaption
• Twisted-pair transmission: 10BASE-T: Cat3/4/5 (<=100 m); 100BASE-TX: Cat5+ (<=100 m); 1000BASE-T: Cat5e+ (<=100 m)
• Network protocols: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x
• Forwarding mode: Store and forward (full wire speed)
• Switching capacity: 16 Gbps (non-blocking)
• Forwarding rate @ 64 byte: 11.9 Mpps
• MAC address table: 2K
• Buffer memory: 2M
• Jumbo frame: 9.2K
• LED indicators: Power (green), Link/Act (green)
• Power supply: External adapter, AC 100-240 V 50-60 Hz 0.56 A; 5 W / DC 5 V
• Power consumption: Standby < 1 W, full load < 5 W
• Operating temperature/humidity: 0 to +55 C, 5-90% RH non-condensing
• Storage temperature/humidity: -40 to +75 C, 5-95% RH non-condensing
• Dimensions (L x W x H): 140 x 78 x 34 mm
• Net / gross weight: 0.25 kg / 0.35 kg
• Installation: Desktop, wall mount
• Lightning protection: 4 kV (8/20 us); protection level IP30
• Certification: CCC, CE, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
• Warranty: 1 year

Applications

• HD IP video surveillance networks
• Hotels, banks, campuses and factory quarters
• Small and medium-sized business LANs

In the box

• 8-port Gigabit Ethernet switch x 1
• Power adapter 5 V / 1 A x 1
• User guide x 1
• Warranty card and certificate of conformity x 1
