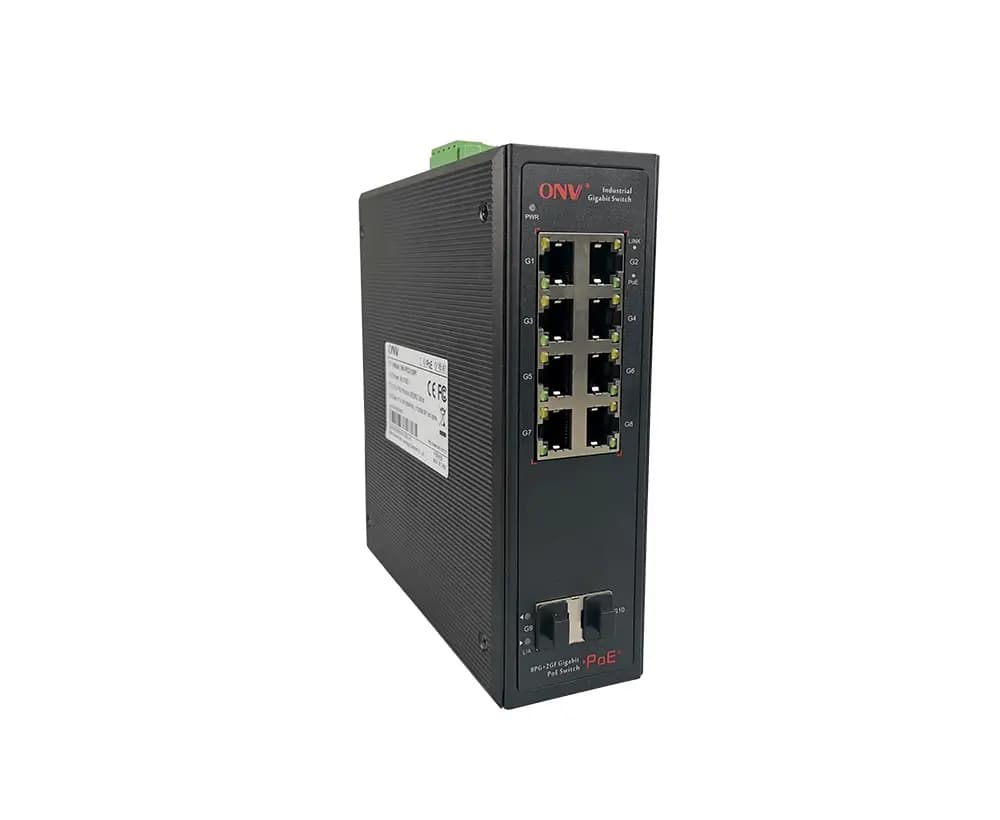

The ONV-IPS33108PF is an unmanaged Gigabit industrial PoE switch with eight 10/100/1000Base-T PoE ports and two 1000Base-X SFP fiber uplinks. Each PoE port supplies up to 30 W under IEEE 802.3af/at to power IP cameras, wireless APs and industrial sensors over the network cable, and the switch provides 20 Gbps of non-blocking switching capacity. An aluminum-alloy housing, dual redundant DC power inputs and a -40 to +80 C operating range suit it to harsh industrial environments, with desktop or 35 mm DIN-rail mounting.

Key features

• Eight Gigabit RJ45 PoE ports (IEEE 802.3af/at, up to 30 W per port) plus two 1000Base-X SFP fiber uplinks
• Wire-speed store-and-forward switching: 20 Gbps capacity and 14.88 Mpps forwarding
• Plug-and-play unmanaged operation with per-port PoE priority when the power budget is limited
• Dual redundant DC power inputs (DC 48-57 V) via 5-pin industrial Phoenix terminal with anti-reverse protection
• Wide -40 to +80 C operating range, IP40-rated aluminum-alloy housing and 6 kV surge protection
• Desktop or 35 mm DIN-rail mounting for flexible industrial installation

Specifications

• Model: ONV-IPS33108PF
• RJ45 ports: 8 x 10/100/1000Base-T PoE (data + power)
• SFP uplinks: 2 x 1000Base-X (LC; module not included)
• Switching capacity: 20 Gbps (non-blocking)
• Forwarding rate: 14.88 Mpps @ 64 byte
• MAC address table: 2K
• Buffer memory: 2M
• Jumbo frame: 9.2K
• PoE standard: IEEE 802.3af/at, up to 30 W/port (ports 1-8)
• Power consumption: Standby < 8 W; full load < 120 W (af) / < 240 W (at)
• Power input: DC 48-57 V, 5-pin Phoenix terminal, dual redundant, anti-reverse
• Fiber distance: MM 850 nm 0-550 m; SM 1310 nm 0-40 km, 1550 nm 0-120 km
• Network protocols: IEEE 802.3 / 3i / 3u / 3ab / 3z / 3x
• Management: Unmanaged (plug and play)
• LED indicators: PWR, Link/Act, PoE
• Operating temp / humidity: -40 to +80 C, 5-90% RH non-condensing
• Storage temp / humidity: -40 to +85 C, 5-95% RH non-condensing
• Protection / surge: IP40; lightning protection 6 kV (8/20 us)
• Dimensions (L x W x H): 145 x 134.5 x 47 mm
• Weight: 0.9 kg net / 1.1 kg gross
• Mounting: Desktop, 35 mm DIN rail
• Certification: CE, FCC Part 15 Class A, RoHS
• Warranty: 5 years

Applications

Intelligent and rail transportation, power/utilities, mining, petroleum, shipping, metallurgy and green-energy sites; powering PoE IP cameras, wireless access points and industrial sensors.

In the box

10-port Gigabit industrial PoE switch (x1), user guide (x1), warranty card and certificate of conformity (x1). Note: the optical modules and power supply are not included and must be purchased separately.
